Overview

MMHE West and East Yard are situated in the Southern part of Malaysia, located in the state of Johor, 22 km from Johor Bahru & 27 km from Singapore.

The 2 fully equipped yards are well-positioned along one of the busiest shipping lanes of the South East Asia. We are strategically located at 41 km from Senai Intenational Airport and only 4 km from Johor Port.

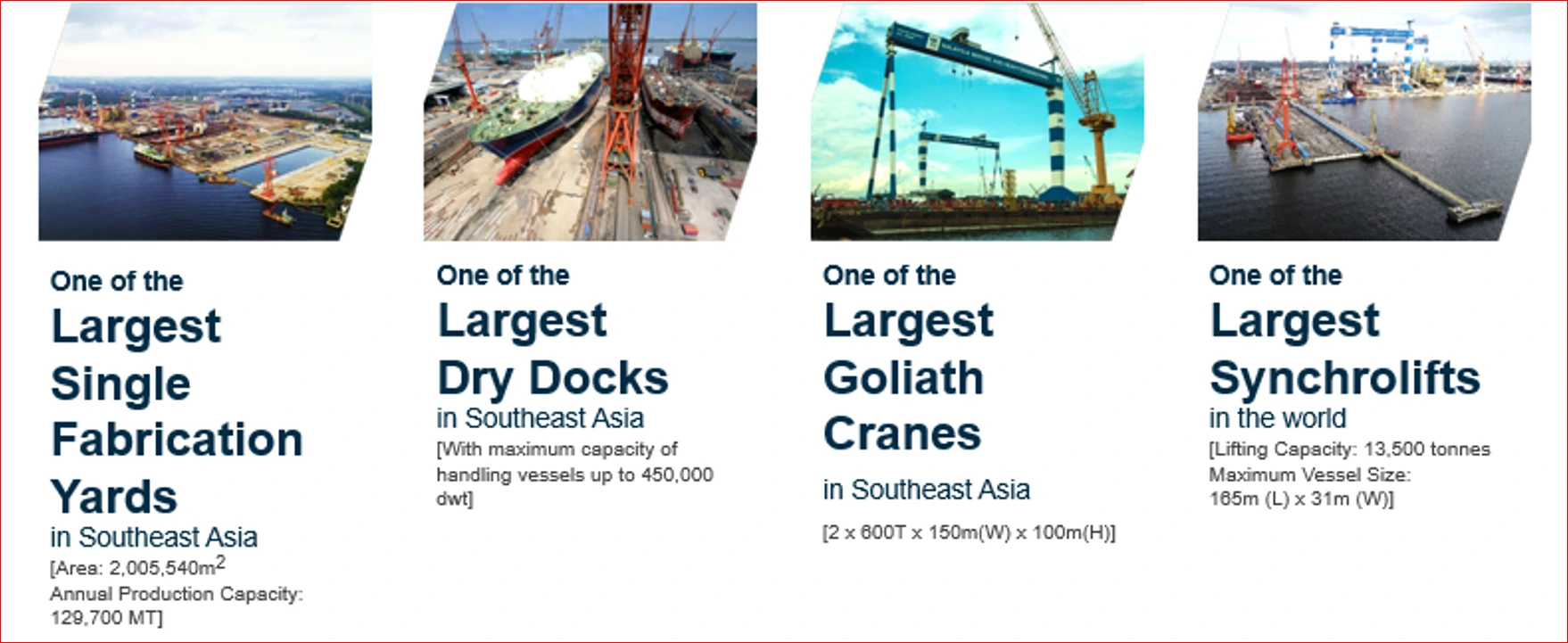

Fabrication Facilities
FACILITIES INFORMATION & DIMENSIONS
Annual Production Capacity 129,700 MT
Workshops/Storage
    • Automated Cutting & Assembly Workshop
    • Centralised Piping Workshop
    • Exotic Piping Workshop
    • Auto-Blast & Primer Workshop
    • Centralised Chemical Cleaning Workshop
    • Structures Fabrication Workshop
  • Tubular & Rolling Production Workshop
  • Blasting & Painting Workshop
    (The Largest Blasting & Painting Workshop in Southeast Asia)
  • Marine Repair Workshop
  • Shiplift Workshop
  • Pressure Vessel Fabrication Workshop
  • Centralised Scheduled Waste Storage
  • Centralised Warehouse
Skid Tracks & Bulkheads

MMHE West Yard

  • 55,000 MT
  • 40,000 MT
  • 12,000 MT
  • 5,000 MT

MMHE East Yard

  • 25,000 MT
  • 2 x 15,000 MT
  • 5,000 MT
Cranes
  • 8 x 250T Crawler Cranes
  • 2 x 400T Crawler Cranes
  • 8 x 50T Mobile Cranes
  • 1 x 45T Mobile Crane
  • 1 x 25MT Mobile Crane
  • 16 x Luffing Cranes
  • 2 x Goliath Cranes
  • 132 x Overhead & Gantry Cranes
Water depth
  • West Yard: -10.5m Lowest Astronomical Tide (LAT) for Quay Length of 400m
  • East Yard: -10.0m LAT for Quay Length of 333m
Length of shoreline
  • West Yard: 1500m
  • East Yard: 500m
Marine Repair Facilities
FACILITIES INFORMATION & DIMENSIONS
Dry dock 1 385m x 80m x 14m Capacity: 450,000 dwt
Dry dock 2 270m x 46m x 12.5m Capacity: 140,000 dwt
Dry dock 3 350m x 80m x 14m Capacity: 400,000 dwt
Land berth 1 345m Capacity: 142 tonnes/m
Land berth 2 345m Capacity: 125 tonnes/m
Shiplift – One of the largest in the world 188m x 33.8m x 8m Capacity: 50,000 dwt
7 Quays/Berth 7 quays up to 369m Average Depth -7m Chart Datum
Finger Pier 300m (L) x 25m (W) 390,000 dwt
LNGC Repair Facilities
  • Cryogenic workshop (740m² area)
  • Invar welding centre
  • Acoustic and helium testing equipment
  • Mobile cargo tanks monitoring instruments console
  • Nitrogen inerting plant for LNG cargo tanks
